Chapter 8 — Complete accessories and tools catalog for OT/IT network segmentation installation, commissioning, and maintenance
8.1 Accessories and Tools Catalog
A successful OT/IT network segmentation deployment requires not only the core security devices but also a comprehensive set of accessories, cables, mounting hardware, testing tools, and documentation materials. The catalog below covers all items required for a complete installation, organized by category. Proper selection of accessories — particularly color-coded cabling and clear labeling — is essential for maintaining the visual zone separation that supports ongoing maintenance and reduces the risk of misconfiguration.

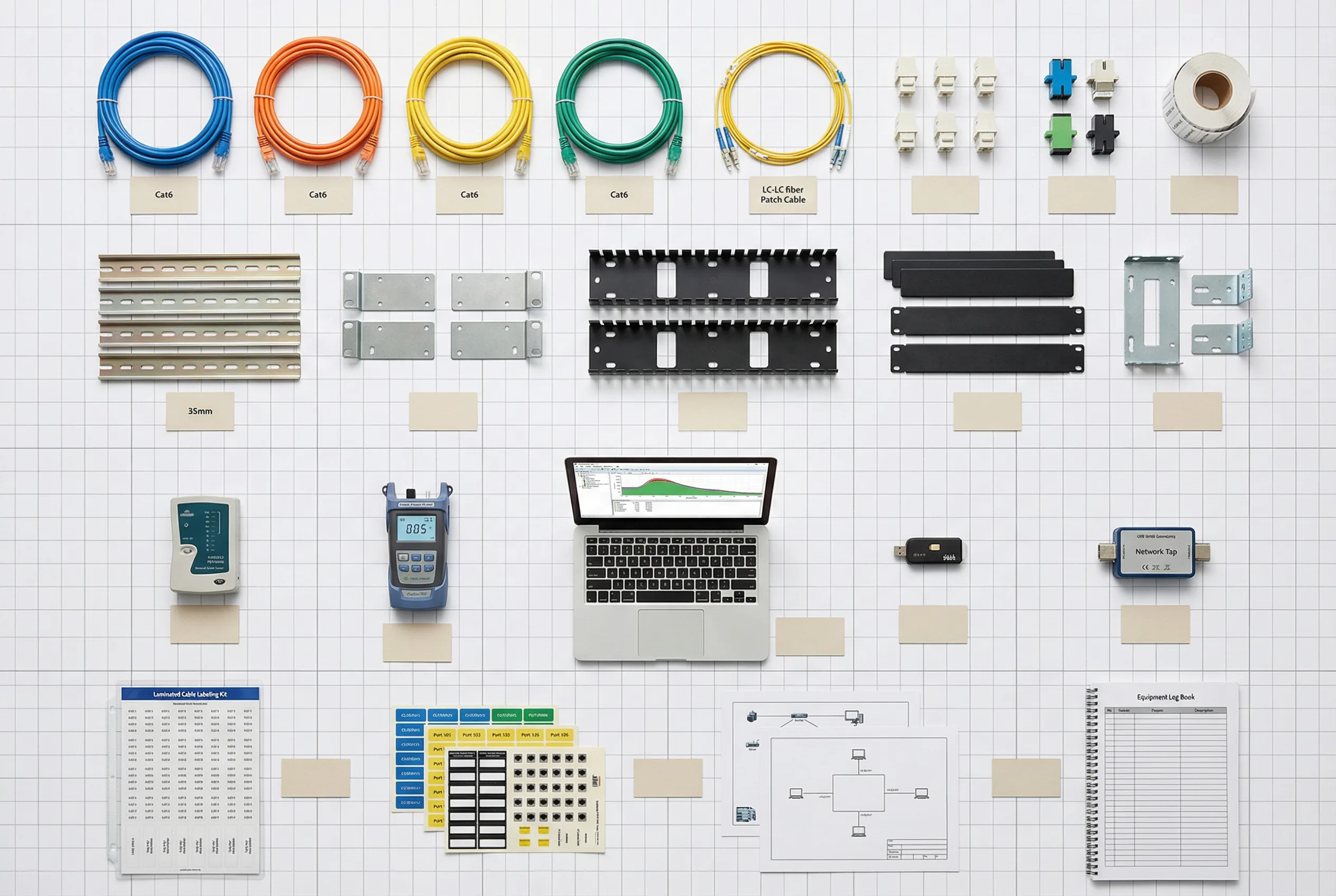

Figure 8.1: Accessories and Tools Catalog — Flat-lay overview of all accessories organized in four rows: Row 1 (Cables and Connectors): color-coded Cat6 patch cables, LC-LC fiber cables, RJ45 keystones, fiber adapters, cable labels; Row 2 (Mounting Hardware): DIN rail, rack ears, cable management trays, blanking panels; Row 3 (Testing Tools): network cable tester, fiber power meter, laptop with analyzer, USB write blocker, portable network tap; Row 4 (Documentation): cable labeling kit, port ID stickers, network diagram templates, equipment log book.
8.2 Complete Accessories Bill of Materials
The following bill of materials covers all accessories required for a standard Industrial DMZ deployment supporting up to 50 OT devices. Quantities should be adjusted based on the actual number of devices, cabinet count, and cable run lengths in the specific deployment. Items marked as "Critical" are required for all deployments; items marked "Recommended" are strongly advised for maintainability and compliance; items marked "Optional" provide additional convenience or enhanced capability.
| Category | Item | Specification | Qty (Standard) | Unit | Priority | Notes |
|---|---|---|---|---|---|---|
| Cables — Copper | IT Network Patch Cable (Blue) | Cat6, RJ45, 1m/2m/3m | 20 | pcs | Critical | Blue for IT zone identification |
| OT Network Patch Cable (Orange) | Cat6, RJ45, 1m/2m/3m | 20 | pcs | Critical | Orange for OT zone identification | |
| Management Network Cable (Yellow) | Cat5e/6, RJ45, 1m/2m | 10 | pcs | Critical | Yellow for OOB management | |
| Console/Rollover Cable (Gray) | RJ45 to DB9, 1.8m | 5 | pcs | Critical | For emergency console access | |
| USB to Serial Adapter | USB-A to RS-232 DB9, FTDI chip | 2 | pcs | Recommended | For console access from modern laptops | |
| Cables — Fiber | LC-LC Duplex Fiber Patch Cable (Green) | OS2 SM, 1m/3m/5m | 10 | pcs | Critical | For SFP fiber connections |
| SC-LC Duplex Fiber Patch Cable | OS2 SM, 3m | 4 | pcs | Recommended | For fiber distribution frame connections | |
| Fiber Optic Cleaning Kit | LC/SC connector cleaner, lint-free wipes | 1 | kit | Recommended | Essential for reliable fiber connections | |
| Mounting Hardware | DIN Rail (35mm) | 35mm × 7.5mm, steel, 1m length | 5 | pcs | Critical | For DIN rail mounted equipment |
| Rack Mounting Ears | Universal 1U/2U rack ears, steel | 10 | pairs | Critical | For rack-mount equipment installation | |
| Cable Management Tray (1U) | 1U horizontal cable manager, brush strips | 4 | pcs | Recommended | Separate IT and OT cable paths | |
| Blanking Panels (1U) | 1U rack blanking panel, plastic | 10 | pcs | Recommended | Block unused rack slots; improve airflow | |
| Testing Tools | Network Cable Tester | Cat5e/6/6A, RJ45/RJ11, wiremap display | 1 | pcs | Critical | Verify all copper cable connections |
| Fiber Optic Power Meter | 850/1300/1310/1550nm, -50 to +26 dBm | 1 | pcs | Critical | Verify fiber link loss budget | |
| Portable Network Analyzer Laptop | With Wireshark, nmap, OT protocol analyzer | 1 | pcs | Critical | For commissioning and troubleshooting | |
| USB Write Blocker | Hardware write blocker, USB 3.0 | 2 | pcs | Recommended | Safe media handling in OT environment | |
| Portable Network TAP | Passive 10/100/1000 TAP, 4-port | 1 | pcs | Optional | For temporary traffic capture during troubleshooting | |
| Labeling & Documentation | Cable Labeling Kit | Laminated self-laminating labels, laser printable | 1 | kit | Critical | Label all cables at both ends |
| Port Identification Stickers | Color-coded port ID stickers, 12mm diameter | 2 | sheets | Recommended | Mark zone assignments on switch ports | |
| Network Diagram Template Set | A3 laminated zone diagram templates | 1 | set | Recommended | Post inside cabinet door for reference | |
| Equipment Log Book | Hardcover, pre-printed change log pages | 1 | pcs | Recommended | Physical record of all changes and maintenance |
8.3 Spare Parts Recommendations
Maintaining an adequate spare parts inventory is essential for minimizing downtime in the event of equipment failure. The following table provides recommended spare quantities for a standard deployment, based on typical MTBF values and acceptable repair time objectives. Critical spares should be stored on-site; non-critical spares may be stored at a regional depot with a defined delivery SLA.
| Component | Recommended On-Site Spare | Storage Location | Replacement Trigger | Lead Time (if not stocked) |
|---|---|---|---|---|
| Industrial Firewall (OT-FW) | 1 unit (cold standby) | Locked cabinet, same room | HA failover event or hardware fault | 2–4 weeks |
| Industrial Managed Switch | 1 unit per model | On-site spare parts cabinet | Port failure or hardware fault | 1–2 weeks |
| SFP Fiber Transceiver | 4 units per type | Anti-static bag, on-site | Link failure after cable check | 3–5 days |
| Cat6 Patch Cable (each color) | 5 units per length/color | Cable management drawer | Physical damage or test failure | 1–2 days |
| Power Supply Unit (PSU) | 1 unit per PSU model | On-site spare parts cabinet | PSU fault alarm | 1–2 weeks |
| DIN Rail (35mm) | 2m | On-site spare parts cabinet | Physical damage during maintenance | 1–3 days |
